Brand Name : SENCAN
Model Number : SC-TP-652
Certification : CE, ISO9001
Place of Origin : China
MOQ : 1 set
Price : Negotiate according to the actual situation
Payment Terms : T/T,L/C
Supply Ability : 3 sets
Delivery Time : 90 days
Packaging Details : Wooden case
Configuration : Heli cap assembly machine
Function : Cap assembly
Material : Stainless Steel
Air Pressure : 0.6-0.8MPa
Warranty : 1 year
Operation Mode : Touch Screen
Production Efficiency : 99%
Operating Speed : Adjustable
Power Supply : 220V/50Hz
Cable Size : Three-phase five-wire system
Mechanism : Servo
Bottle Height Range : 50-200mm
Cap Diameter Range : 10-30mm
Speed : Adjustable
Features
1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.
Properties
Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly
Production speed: 3000-12000pcs/hr (according to customer’s requirement)
Rate of qualified product: Above 99%(depends on raw material quality)
Rate of operation rate: Above 95%
Power source: AC380V, 50Hz, 4kw/hr
Dimension: Actual size varied with different production speed
Weight: About 2850kg
Operator: 1set/person
![]() |

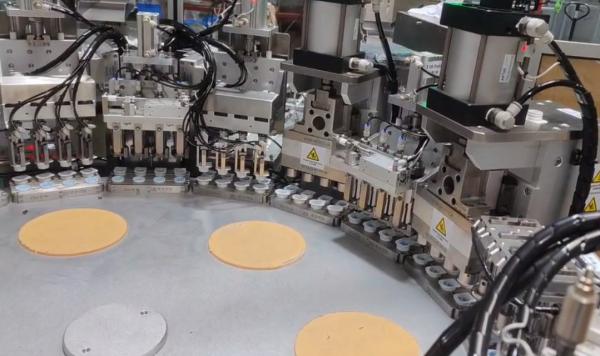

Heli Cap Automatic Assembly Machine Air Pressure 0.6-0.8MPa Images |
